TE Connectivity AMP Connectors-917784-1 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	917784-1	917787-1	917785-1	917786-1	917789-1	917788-1	917724-1	917780-1	917781-1	917782-1	917783-1
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)
Number of Positions	6	9	7	8	11	10	4	2	3	4	5
Number of Rows	1	1	1	1	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder
Fastening Type	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder
Contact Length - Mating	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)
Contact Length - Post	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)
Overall Contact Length	0.410" (10.41mm)	0.410" (10.41mm)	0.410" (10.41mm)	0.410" (10.41mm)	0.410" (10.41mm)	0.410" (10.41mm)	0.626" (15.90mm)	0.410" (10.41mm)	0.410" (10.41mm)	0.410" (10.41mm)	0.410" (10.41mm)
Insulation Height	0.386" (9.80mm)	0.386" (9.80mm)	0.386" (9.80mm)	0.386" (9.80mm)	0.386" (9.80mm)	0.386" (9.80mm)	0.602" (15.29mm)	0.386" (9.80mm)	0.386" (9.80mm)	0.386" (9.80mm)	0.386" (9.80mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Finish Thickness - Mating	-	-	-	-	-	-	-	-	-	-	-
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide
Operating Temperature	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C	-30°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural
Current Rating (Amps)	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A
Voltage Rating	50V	50V	50V	50V	50V	50V	50V	50V	50V	50V	50V

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	6
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.185" (4.70mm)
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	0.410" (10.41mm)
Insulation Height:	0.386" (9.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA66), Nylon 6/6, Glass Filled
Features:	Board Guide
Operating Temperature:	-30°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	3A
Voltage Rating:	50V

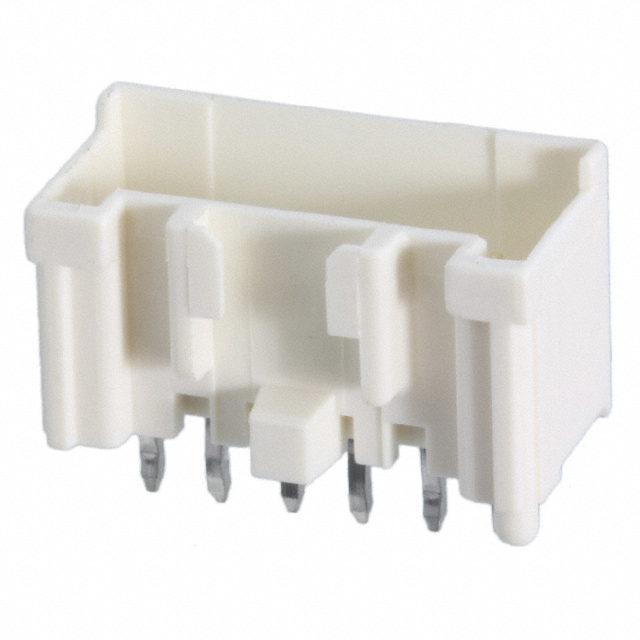

TE Connectivity AMP Connectors 917784-1
