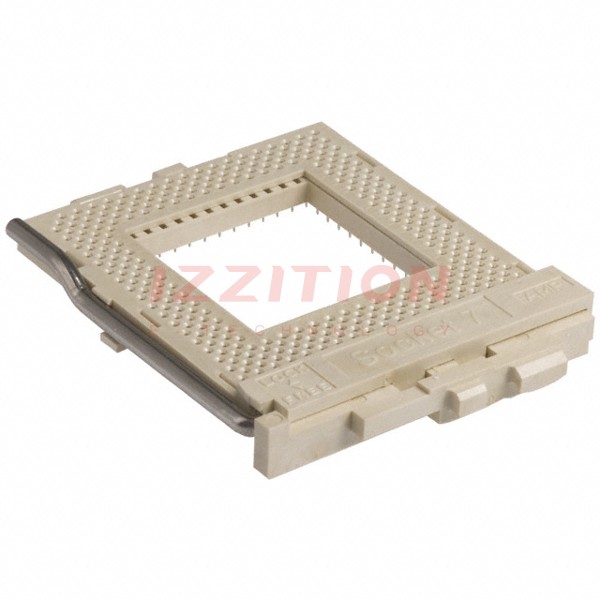

| Part Number | 916716-2 | 916716-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Type | PGA, ZIF (ZIP) | PGA, ZIF (ZIP) |
| Number of Positions or Pins (Grid) | 321 (19 x 19) | 321 (19 x 19) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Material - Mating | Phosphor Bronze | Phosphor Bronze |
| Mounting Type | Through Hole | Through Hole |
| Features | Open Frame | Open Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Material - Post | Phosphor Bronze | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Operating Temperature | - | - |
