916715-3
  • Share:

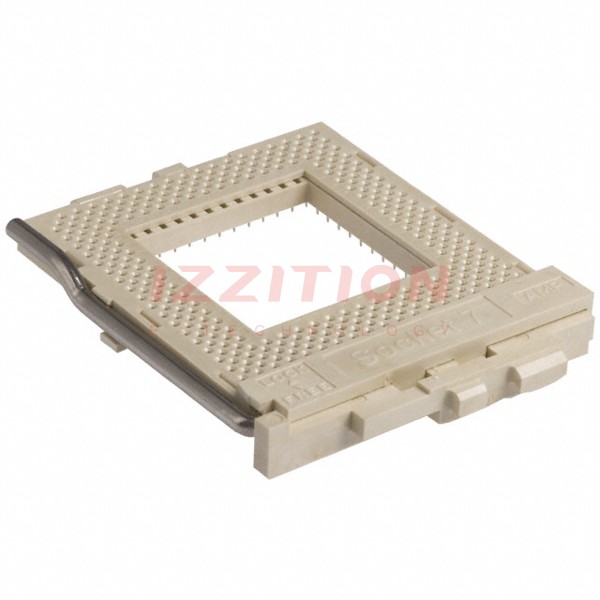

TE Connectivity AMP Connectors 916715-3

Manufacturer No:
916715-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
916715-3 Datasheet
ECAD Model:
-
Description:
CONN SOCKET PGA ZIF 321POS GOLD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:PGA, ZIF (ZIP)
Number of Positions or Pins (Grid):321 (19 x 19)
Pitch - Mating:0.100" (2.54mm)
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Material - Mating:Phosphor Bronze
Mounting Type:Through Hole
Features:Open Frame
Termination:Solder
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:Gold
Contact Finish Thickness - Post:15.0µin (0.38µm)
Contact Material - Post:Phosphor Bronze
Housing Material:Liquid Crystal Polymer (LCP)
Operating Temperature:-
0 Remaining View Similar

In Stock

-
348

Please send RFQ , we will respond immediately.
