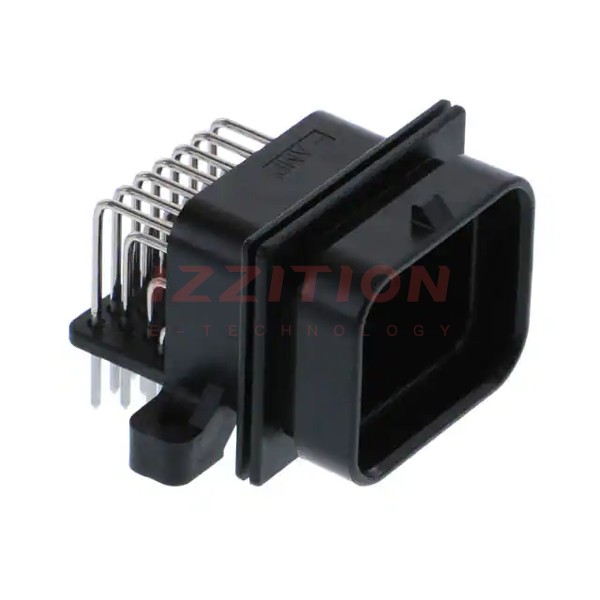

TE Connectivity AMP Connectors 9-6437287-8

Manufacturer No:
9-6437287-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
9-6437287-8 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 26POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:26
Number of Rows:4
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:1.079" (27.40mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester
Features:Mounting Flange
Operating Temperature:-40°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:-
Current Rating (Amps):-
Voltage Rating:250V
0 Remaining View Similar

In Stock

$19.66
14

Please send RFQ , we will respond immediately.
