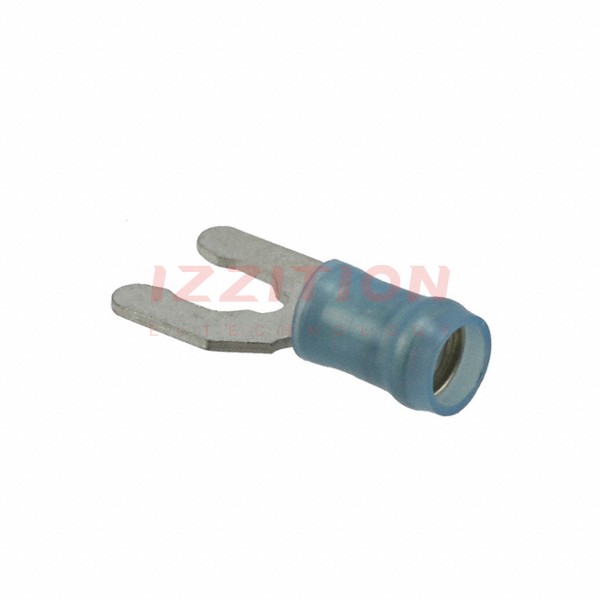

| Part Number | 9-52937-1 | 9-52935-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 10 Stud | 6 Stud |
| Width - Outer Edges | 0.406" (10.31mm) | 0.250" (6.35mm) |
| Length - Overall | 0.908" (23.06mm) | 0.799" (20.29mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination |
| Color | Blue | Blue |
| Contact Finish | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
