9-2823056-0
  • Share:

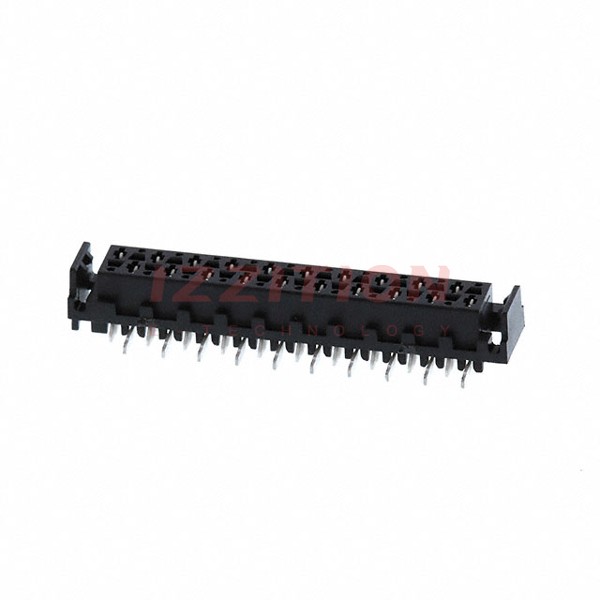

TE Connectivity AMP Connectors 9-2823056-0

Manufacturer No:
9-2823056-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
9-2823056-0 Datasheet
ECAD Model:
-
Description:
CONN RCPT 20POS 0.1 TIN SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Forked
Style:Board to Board or Cable
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:-
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:118.1µin (3.00µm)
Insulation Color:Black
Insulation Height:0.209" (5.30mm)
Contact Length - Post:-
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place
Current Rating (Amps):-
Voltage Rating:100VDC
0 Remaining View Similar

In Stock

$1.25
8

Please send RFQ , we will respond immediately.
