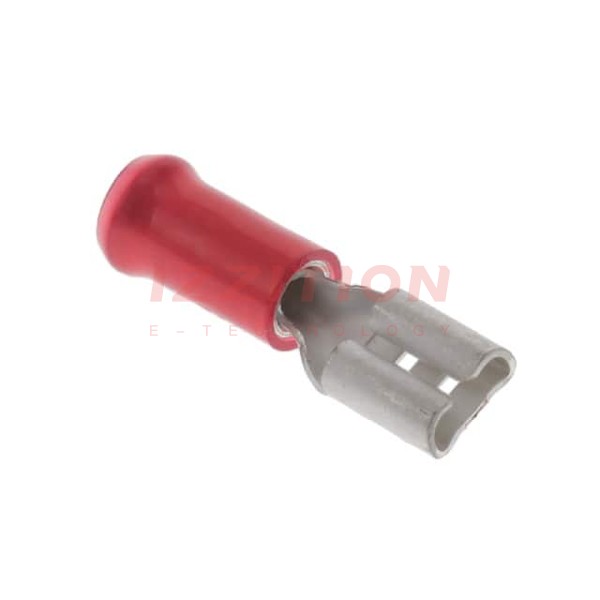

| Part Number | 9-160483-5 | 9-160583-5 | 9-160463-5 | 9-160483-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Stacked | Standard |
| Gender | Female | Female | Female and Male | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.303" (7.70mm) | 0.305" (7.75mm) | 0.250" (6.35mm) |
| Length - Overall | 0.822" (20.88mm) | 0.874" (22.20mm) | 0.922" (23.42mm) | 0.822" (20.88mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 15.5-22 AWG | 14-16 AWG | 16-22 AWG |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | Red | Red | Blue | Red |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin | Electro-Tin | Tin |
