Please send RFQ , we will respond immediately.

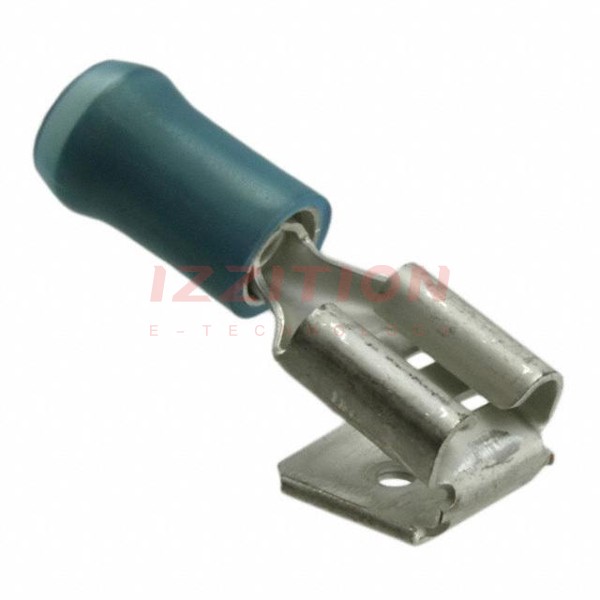

| Part Number | 9-160463-5 | 9-160483-5 | 9-160463-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Stacked | Standard | Stacked |
| Gender | Female and Male | Female | Female and Male |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.305" (7.75mm) |
| Length - Overall | 0.922" (23.42mm) | 0.822" (20.88mm) | 0.922" (23.42mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 16-22 AWG | 14-16 AWG |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | Blue | Red | Blue |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Brass |
| Contact Finish | Electro-Tin | Tin | Electro-Tin |
