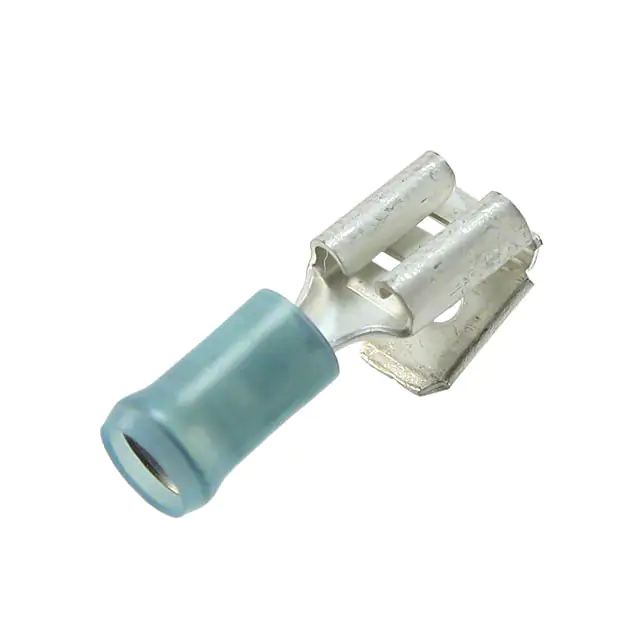

| Part Number | 9-160463-2 | 9-160463-5 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Stacked | Stacked |
| Gender | Female and Male | Female and Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) |
| Length - Overall | 0.922" (23.42mm) | 0.922" (23.42mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | Blue | Blue |
| Contact Material | Brass | Phosphor Bronze |
| Contact Finish | Electro-Tin | Electro-Tin |
