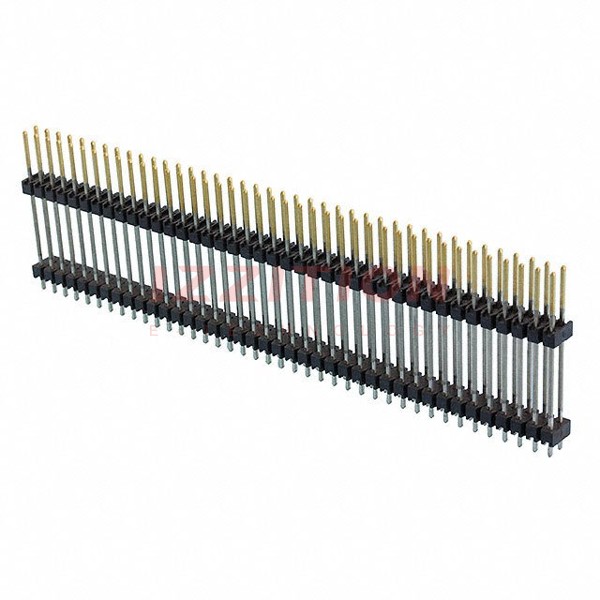

| Part Number | 9-146500-0 | 9-146506-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Number of Positions | 80 | 80 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 |
| Row Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Length - Overall Pin | 1.130" (28.700mm) | 1.330" (33.782mm) |
| Length - Post (Mating) | 0.330" (8.382mm) | 0.330" (8.382mm) |
| Length - Stack Height | 0.700" (17.780mm) | 0.900" (22.860mm) |
| Length - Tail | 0.100" (2.540mm) | 0.100" (2.540mm) |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Contact Finish - Post (Mating) | Gold | Gold |
| Contact Finish Thickness - Post (Mating) | 15.0µin (0.38µm) | 15.0µin (0.38µm) |
| Color | Black | Black |
