Please send RFQ , we will respond immediately.

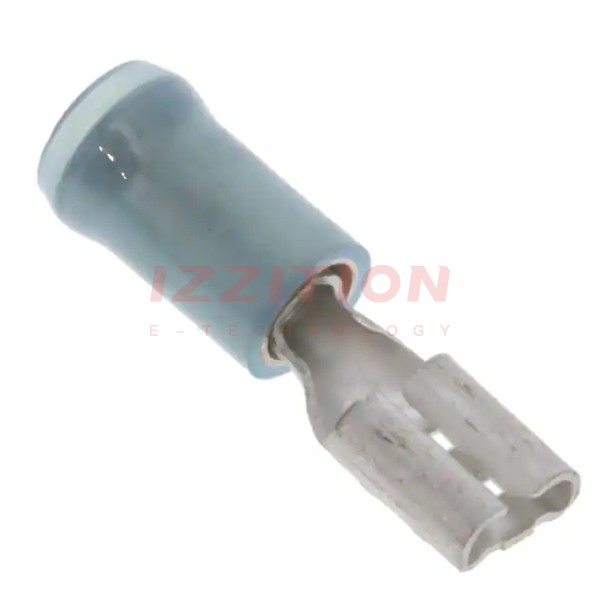

| Part Number | 9-1377174-9 | 9-1377174-1 | 9-1377174-2 | 9-1377174-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.303" (7.70mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.862" (21.90mm) | 0.874" (22.20mm) | 0.822" (20.88mm) | 0.780" (19.81mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 16-22 AWG | 16-22 AWG | 13.5-15.5 AWG |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | Blue | Red | Red | Blue |
| Contact Material | Brass | Brass | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
