Please send RFQ , we will respond immediately.

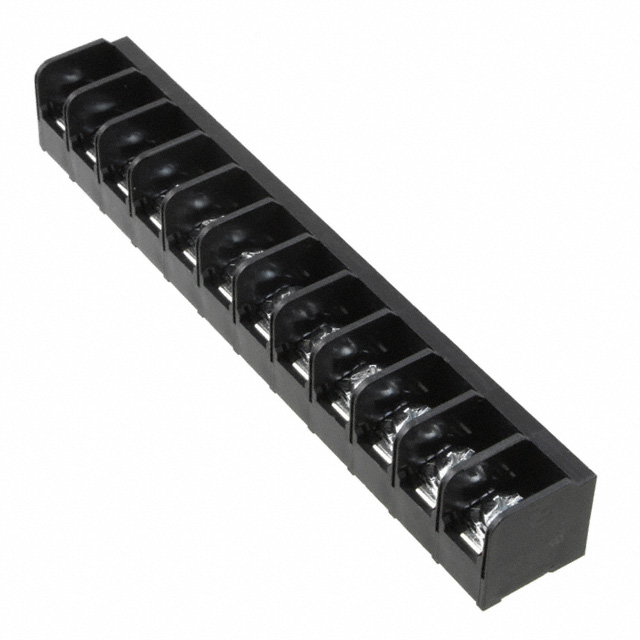

| Part Number | 8PCV-12-006 | 6PCV-12-006 | 8PCV-02-006 | 8PCV-10-006 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Block Type | Barrier Block | Barrier Block | Barrier Block | Barrier Block |
| Number of Circuits | 12 | 12 | 2 | 10 |
| Number of Wire Entries | 12 | 12 | 2 | 10 |
| Pitch | 0.438" (11.12mm) | 0.375" (9.53mm) | 0.438" (11.12mm) | 0.438" (11.12mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Current Rating (Amps) | 30A | 25A | 30A | 30A |
| Voltage Rating | 600V | 300V | 600V | 600V |
| Wire Gauge | 10-18 AWG | 12-22 AWG | 10-18 AWG | 10-18 AWG |
| Top Termination | Screws with Captive Plate | Screws | Screws with Captive Plate | Screws with Captive Plate |
| Bottom Termination | PC Pin | PC Pin | PC Pin | PC Pin |
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) |
| Features | - | - | - | - |
| Color | Black | Black | Black | Black |
