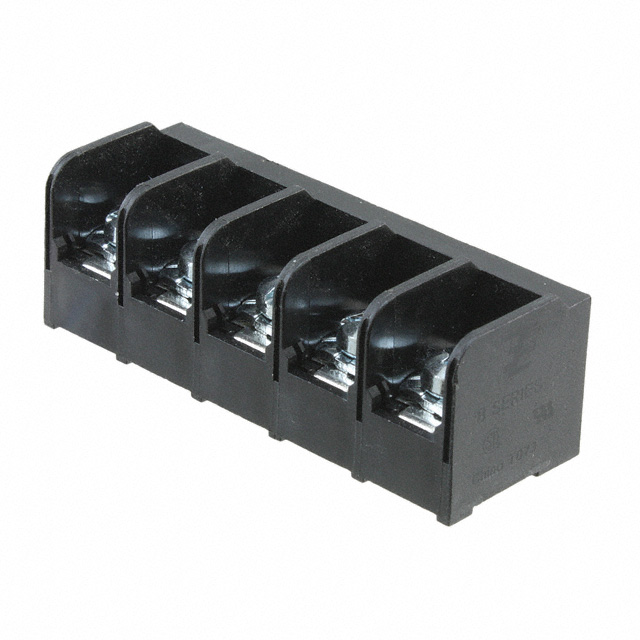

| Part Number | 8PCV-05-006 | 8PCV-06-006 | 8PCV-07-006 | 8PCV-08-006 | 6PCV-05-006 | 8PCV-02-006 | 8PCV-03-006 | 8PCV-04-006 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Block Type | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block |
| Number of Circuits | 5 | 6 | 7 | 8 | 5 | 2 | 3 | 4 |
| Number of Wire Entries | 5 | 6 | 7 | 8 | 5 | 2 | 3 | 4 |
| Pitch | 0.438" (11.12mm) | 0.438" (11.12mm) | 0.438" (11.12mm) | 0.438" (11.12mm) | 0.375" (9.53mm) | 0.438" (11.12mm) | 0.438" (11.12mm) | 0.438" (11.12mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Current Rating (Amps) | 30A | 30A | 30A | 30A | 25A | 30A | 30A | 30A |
| Voltage Rating | 600V | 600V | 600V | 600V | 300V | 600V | 600V | 600V |
| Wire Gauge | 10-18 AWG | 10-18 AWG | 10-18 AWG | 10-18 AWG | 12-22 AWG | 10-18 AWG | 10-18 AWG | 10-18 AWG |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate |
| Bottom Termination | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) |
| Features | - | - | - | - | - | - | - | - |
| Color | Black | Black | Black | Black | Black | Black | Black | Black |
