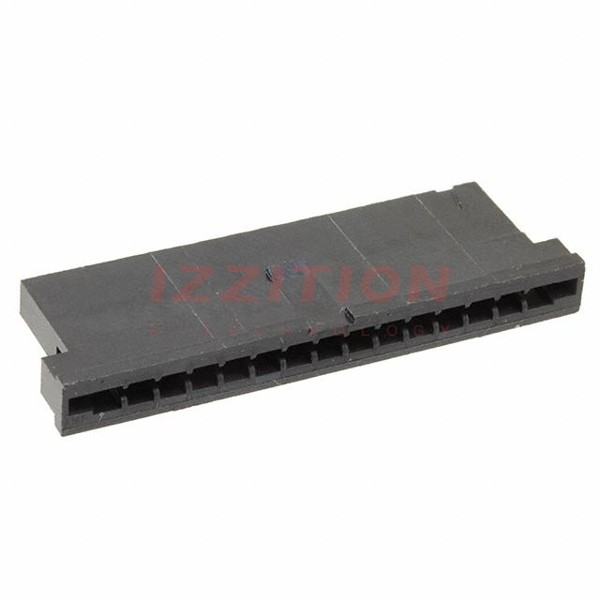

| Part Number | 88859-6 | 88859-7 | 88859-9 | 88859-8 | 88859-1 | 88859-2 | 88859-3 | 88859-4 | 88859-5 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Flat Flex Type | FFC | FFC | FFC | FFC | FFC | FFC | FFC | FFC | FFC |
| Connector Type | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts |
| Number of Positions | 15 | 14 | 3 | 20 | 6 | 8 | 10 | 12 | 13 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| FFC, FCB Thickness | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm |
| Locking Feature | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock |
| Voltage Rating | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
