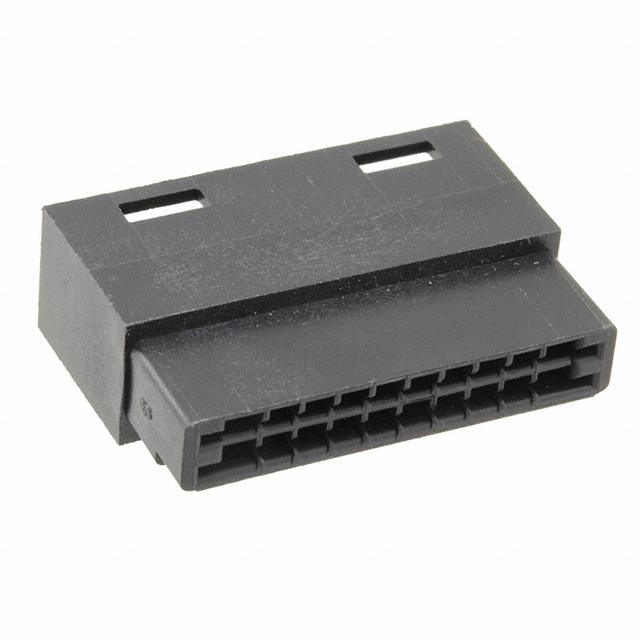

| Part Number | 88189-6 | 88189-8 | 88189-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Flat Flex Type | FFC, Discrete Wire | FFC, Discrete Wire | FFC, Discrete Wire |
| Connector Type | Housing for Male Contacts | Housing for Male Contacts | Housing for Male Contacts |
| Number of Positions | 20 | 24 | 18 |
| Number of Rows | 2 | 2 | 2 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| FFC, FCB Thickness | 0.015mm | 0.015mm | 0.015mm |
| Locking Feature | Detent Lock | Detent Lock | Detent Lock |
| Voltage Rating | 300 V | 300 V | 300 V |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Features | Positions Stamped | Positions Stamped | Positions Stamped |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
