Please send RFQ , we will respond immediately.

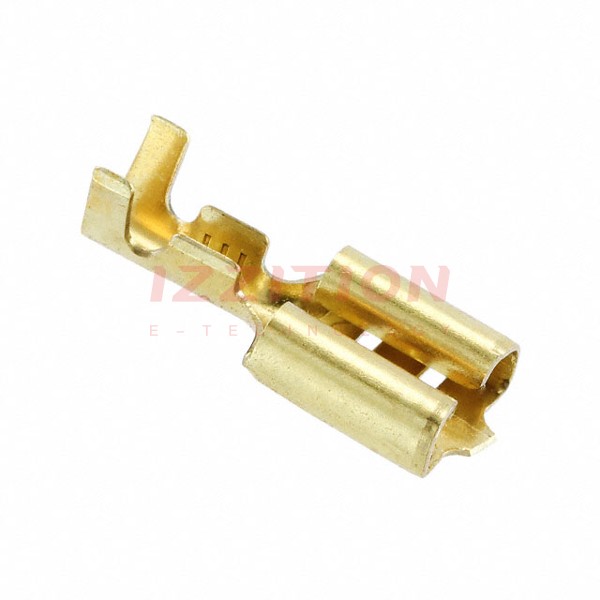

| Part Number | 880683-1 | 880688-1 | 880683-3 | 880633-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Male | Female | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.303" (7.70mm) | 0.618" (15.70mm) | 0.303" (7.70mm) | 0.283" (7.20mm) |
| Length - Overall | 0.642" (16.31mm) | 1.102" (28.00mm) | 0.642" (16.31mm) | 0.583" (14.80mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 17-20 AWG | 18-20 AWG | 17-20 AWG | 18-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Phosphor Bronze | Brass |
| Contact Finish | - | - | - | - |
