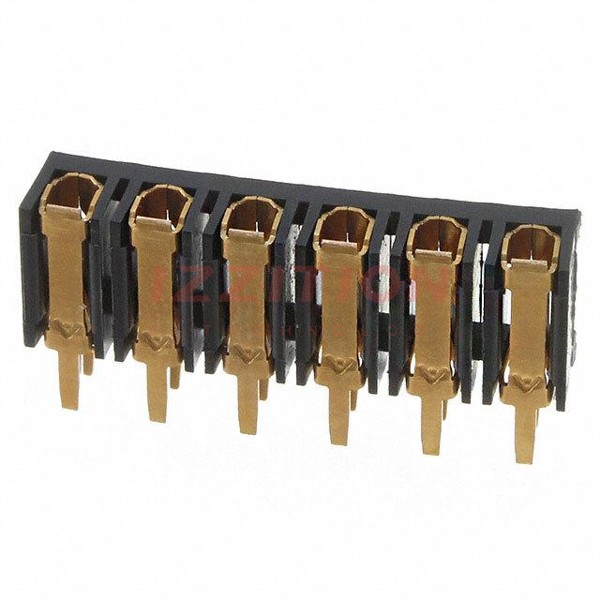

| Part Number | 87982-6 | 87984-6 | 87986-6 | 87989-6 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle, Bottom Entry | Receptacle | Receptacle, Bottom Entry |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 6 | 6 | 6 | 6 |
| Number of Positions Loaded | All | All | All | All |
| Pitch - Mating | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Insulation Color | Black | Black | Black | Black |
| Insulation Height | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) |
| Contact Length - Post | 0.112" (2.84mm) | 0.112" (2.84mm) | 0.112" (2.84mm) | 0.112" (2.84mm) |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-2 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Gold | Gold | Gold | Aluminum |
| Mated Stacking Heights | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Features | - | - | - | - |
| Current Rating (Amps) | - | - | - | - |
| Voltage Rating | - | - | - | - |
