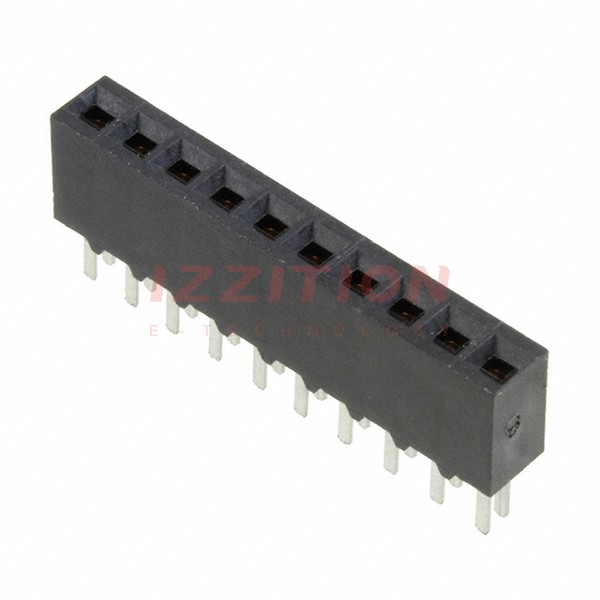

| Part Number | 87879-2 | 87879-7 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 10 | 12 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.267" (6.78mm) | 0.267" (6.78mm) |
| Contact Length - Post | 0.115" (2.92mm) | 0.115" (2.92mm) |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C |
| Material Flammability Rating | - | - |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | - | - |
