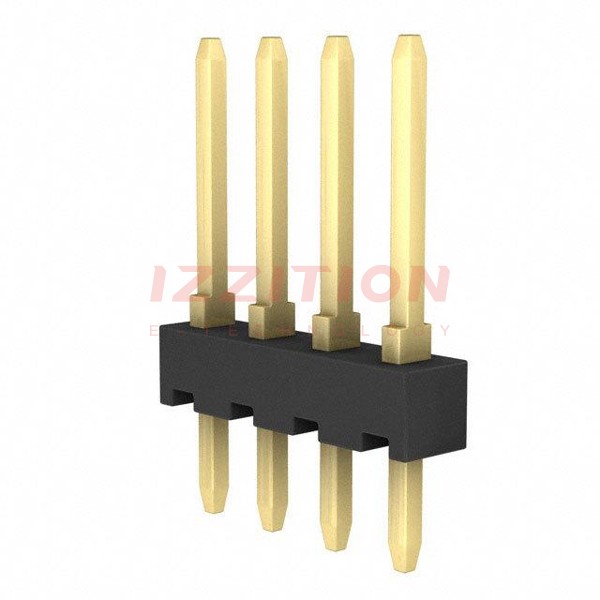

| Part Number | 87527-4 | 87577-4 | 87527-2 | 87527-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Active |
| Connector Type | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 4 | 14 | 2 | 3 |
| Number of Rows | 1 | 2 | 1 | 1 |
| Row Spacing - Mating | - | 0.100" (2.54mm) | - | - |
| Number of Positions Loaded | All | All | All | All |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Unshrouded | Shrouded - 4 Wall | Unshrouded | Unshrouded |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Detent Lock | Push-Pull | Push-Pull |
| Contact Length - Mating | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) |
| Contact Length - Post | 0.154" (3.91mm) | 0.135" (3.43mm) | 0.154" (3.91mm) | 0.154" (3.91mm) |
| Overall Contact Length | 0.562" (14.27mm) | - | 0.562" (14.27mm) | 0.562" (14.27mm) |
| Insulation Height | 0.090" (2.29mm) | 0.400" (10.16mm) | 0.090" (2.29mm) | 0.090" (2.29mm) |
| Contact Shape | Square | Square | Square | Square |
| Contact Finish - Mating | Gold | Tin-Lead | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Tin-Lead | Gold | Gold |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Thermoplastic | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Features | - | - | - | - |
| Operating Temperature | - | -65°C ~ 105°C | - | - |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | - | UL94 V-0 | - | - |
| Insulation Color | Black | Black | Black | Black |
| Current Rating (Amps) | - | 3A | - | - |
| Voltage Rating | - | - | - | - |
