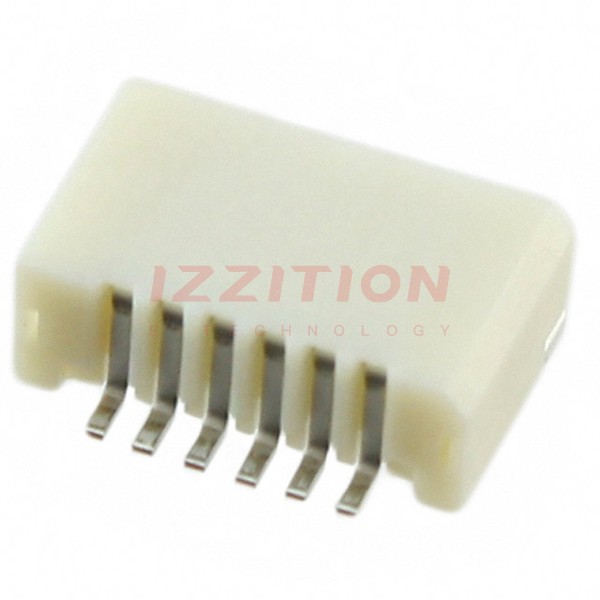

| Part Number | 84981-6 | 84981-8 | 84984-6 | 84981-4 | 84981-5 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Flat Flex Type | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Through Hole | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top | Contacts, Top | Contacts, Vertical - 1 Sided | Contacts, Top | Contacts, Top |
| Number of Positions | 6 | 8 | 6 | 4 | 5 |
| Pitch | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Termination | Solder | Solder | Kinked Pin | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.220" (5.59mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Locking Feature | - | - | - | - | - |
| Cable End Type | Straight | Straight | Straight | Straight | Straight |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Actuator Material | - | - | - | - | - |
| Features | Solder Retention | Solder Retention | - | Solder Retention | Solder Retention |
| Voltage Rating | 125V | 125V | 125V | 125V | 125V |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Material Flammability Rating | - | - | - | - | - |
