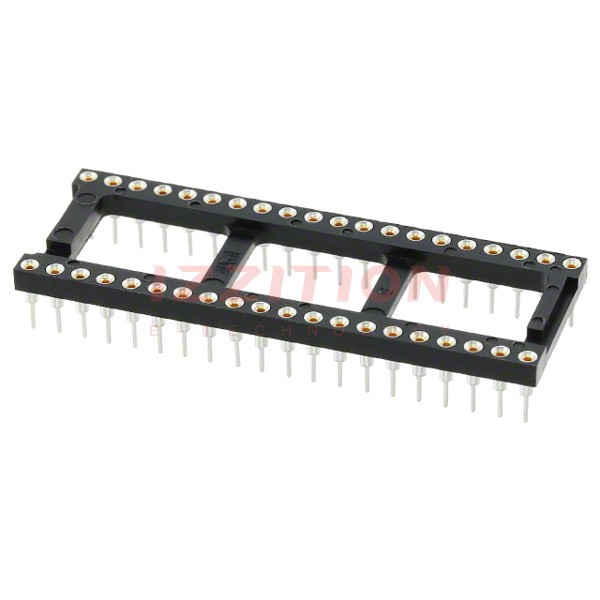

| Part Number | 840-AG11D-ESL-LF | 820-AG11D-ESL-LF |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Type | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 40 (2 x 20) | 20 (2 x 10) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Mounting Type | Through Hole | Through Hole |
| Features | Open Frame | Open Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Material - Post | Copper | Copper |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
