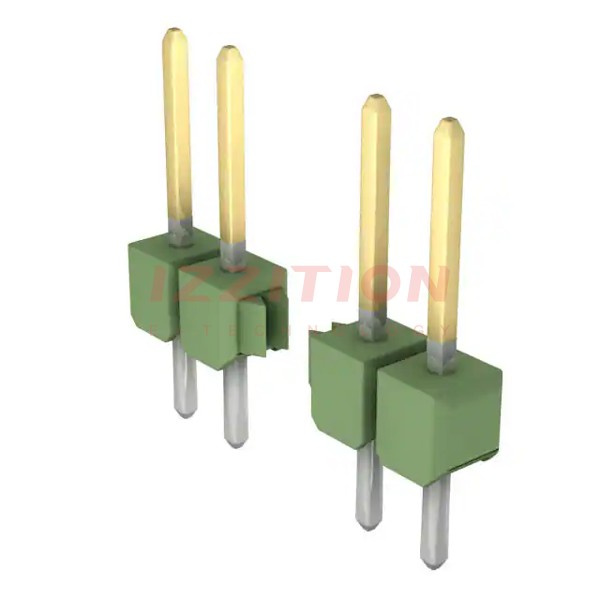

TE Connectivity AMP Connectors 829487-7

Manufacturer No:
829487-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
829487-7 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 7POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.449" (11.40mm)
Contact Length - Post:0.122" (3.10mm)
Overall Contact Length:0.681" (17.30mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Green
Current Rating (Amps):5A
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.41
524

Please send RFQ , we will respond immediately.
