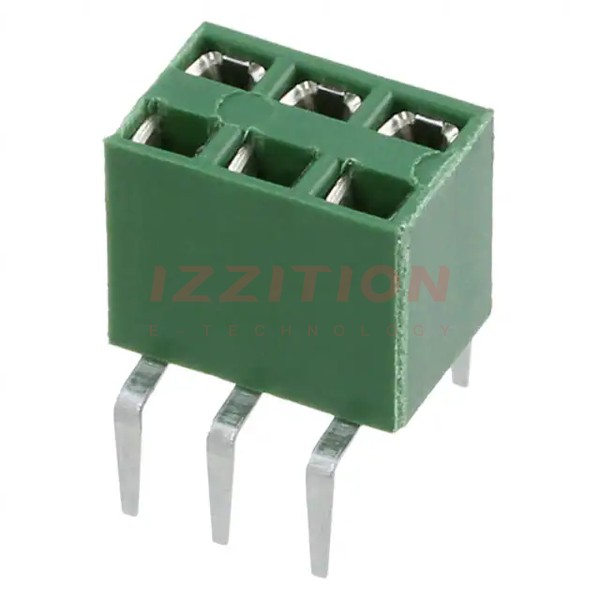

| Part Number | 829264-3 | 829265-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board | Board to Board |
| Number of Positions | 6 | 3 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 1 |
| Row Spacing - Mating | 0.100" (2.54mm) | - |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) | 31.5µin (0.80µm) |
| Insulation Color | Green | Green |
| Insulation Height | 0.244" (6.20mm) | 0.256" (6.50mm) |
| Contact Length - Post | 0.120" (3.05mm) | 0.120" (3.05mm) |
| Operating Temperature | - | - |
| Material Flammability Rating | - | - |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | - | - |
| Voltage Rating | - | - |
