829025-2
  • Share:

TE Connectivity AMP Connectors 829025-2

Manufacturer No:
829025-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
829025-2 Datasheet
ECAD Model:
-
Description:

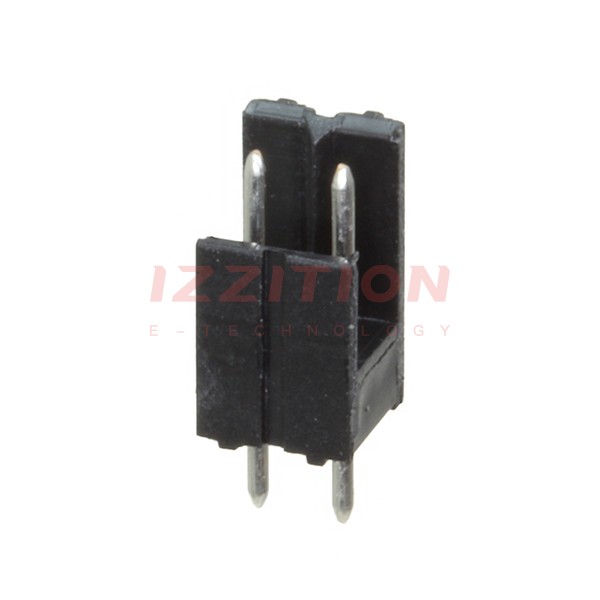

CONN HEADER VERT 2POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 2 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.205" (5.21mm)
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:-
Insulation Height:0.346" (8.80mm)
Contact Shape:Circular
Contact Finish - Mating:-
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.45
1,195

Please send RFQ , we will respond immediately.
