828220-3
  • Share:

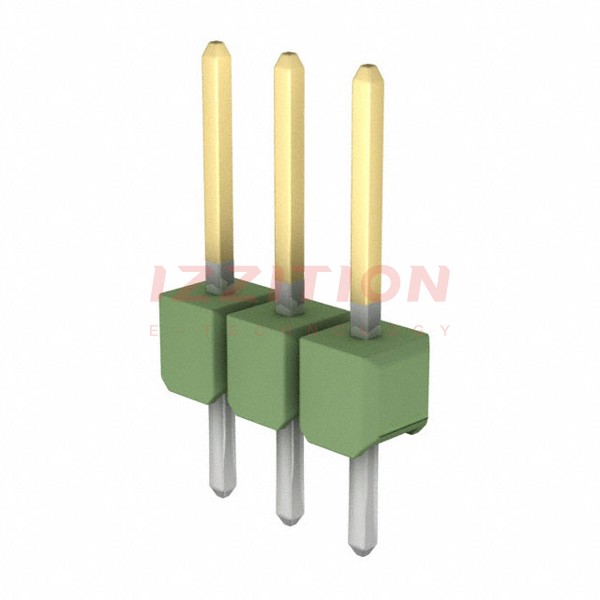

TE Connectivity AMP Connectors 828220-3

Manufacturer No:
828220-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
828220-3 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 3POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.307" (7.80mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.500" (12.70mm)
Insulation Height:0.067" (1.70mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Green
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
13

Please send RFQ , we will respond immediately.
