827795-7
  • Share:

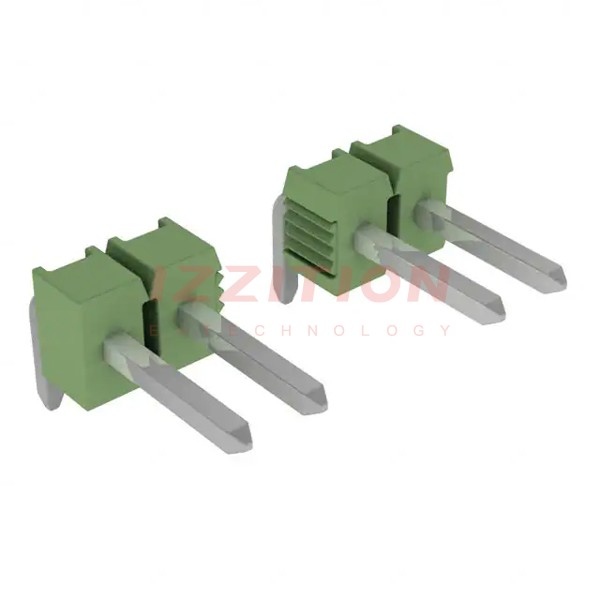

TE Connectivity AMP Connectors 827795-7

Manufacturer No:
827795-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
827795-7 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 7POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.154" (3.91mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Green
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.78
138

Please send RFQ , we will respond immediately.
