827050-1
  • Share:

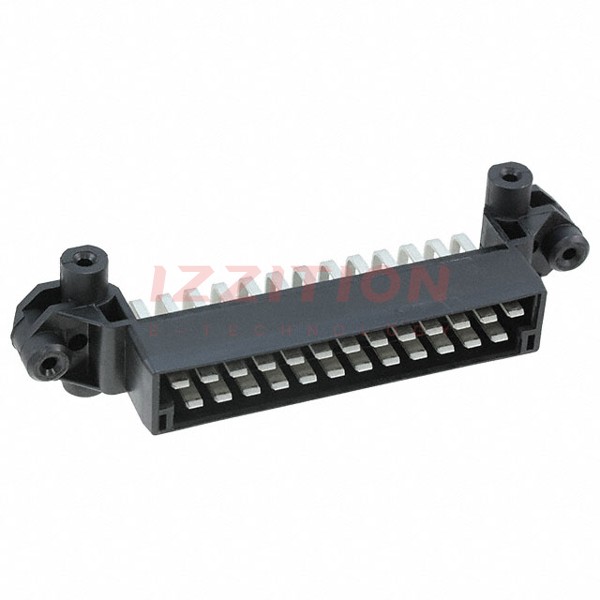

TE Connectivity AMP Connectors 827050-1

Manufacturer No:
827050-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
827050-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 25POS 5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug
Contact Type:Tab
Pitch - Mating:0.197" (5.00mm)
Number of Positions:25
Number of Rows:2
Row Spacing - Mating:0.197" (5.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:-
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:-
Insulation Material:-
Features:Mating Flange, Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$25.22
15

Please send RFQ , we will respond immediately.
