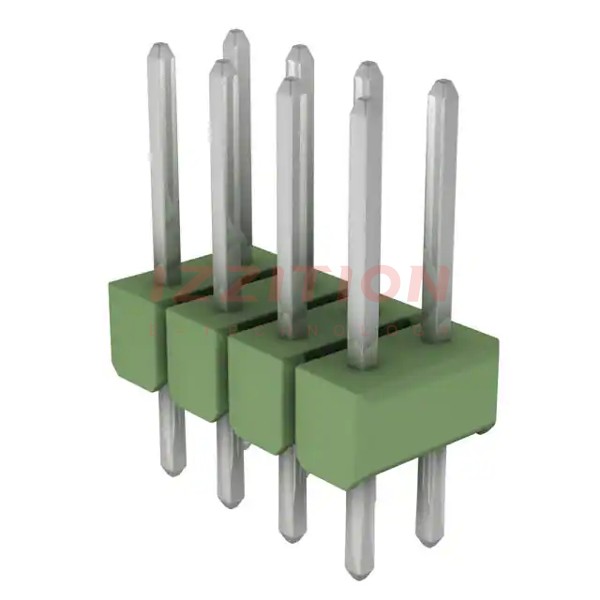

| Part Number | 826925-4 | 826926-4 | 826925-5 | 826925-8 | 826925-7 | 826925-6 | 826925-9 | 826955-4 | 826925-2 | 826925-3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Connector Type | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 8 | 4 | 10 | 16 | 14 | 12 | 18 | 8 | 4 | 6 |
| Number of Rows | 2 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | - | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All | All |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Length - Mating | 0.264" (6.70mm) | 0.264" (6.70mm) | 0.264" (6.70mm) | 0.264" (6.70mm) | 0.264" (6.70mm) | 0.264" (6.70mm) | 0.264" (6.70mm) | 0.228" (5.80mm) | 0.264" (6.70mm) | 0.264" (6.70mm) |
| Contact Length - Post | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) |
| Overall Contact Length | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Insulation Height | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.219" (5.56mm) | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | 78.7µin (2.00µm) | 78.7µin (2.00µm) | 78.7µin (2.00µm) | 78.7µin (2.00µm) | 78.7µin (2.00µm) | 78.7µin (2.00µm) | 78.7µin (2.00µm) | 78.7µin (2.00µm) | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Features | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green |
| Current Rating (Amps) | 5A | 5A | 5A | 5A | 5A | 5A | 5A | 5A | 5A | 5A |
| Voltage Rating | - | - | - | - | - | - | - | - | - | - |
