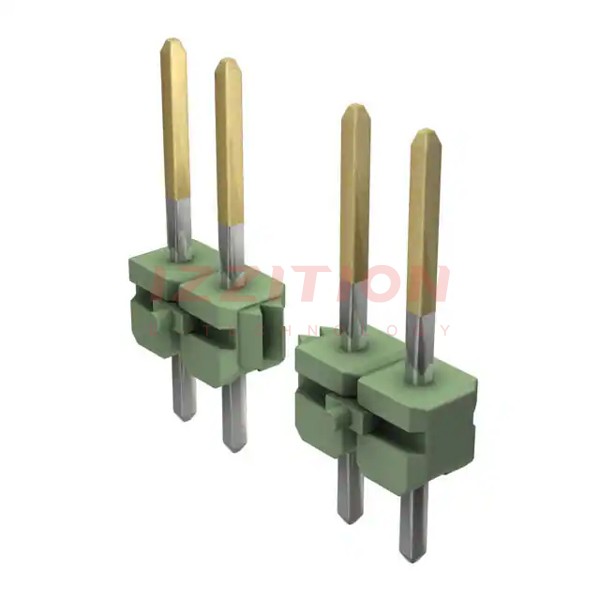

TE Connectivity AMP Connectors 825433-7

Manufacturer No:
825433-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
825433-7 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 7POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.264" (6.70mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.500" (12.70mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):5A
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.21
314

Please send RFQ , we will respond immediately.

Similar Products

Part Number 825433-7 825433-9   825433-8   825437-7   825433-2   825433-3   825433-4   825433-5   825433-6
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active
Connector Type Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 7 9 8 7 2 3 4 5 6
Number of Rows 1 1 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - - - -
Number of Positions Loaded All All All All All All All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded
Mounting Type Through Hole Through Hole Through Hole Through Hole, Right Angle Through Hole Through Hole Through Hole Through Hole Through Hole
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating 0.264" (6.70mm) 0.264" (6.70mm) 0.264" (6.70mm) 0.264" (6.70mm) 0.264" (6.70mm) 0.264" (6.70mm) 0.264" (6.70mm) 0.264" (6.70mm) 0.264" (6.70mm)
Contact Length - Post 0.126" (3.20mm) 0.126" (3.20mm) 0.126" (3.20mm) 0.126" (3.20mm) 0.126" (3.20mm) 0.126" (3.20mm) 0.126" (3.20mm) 0.126" (3.20mm) 0.126" (3.20mm)
Overall Contact Length 0.500" (12.70mm) 0.500" (12.70mm) 0.500" (12.70mm) - 0.500" (12.70mm) 0.500" (12.70mm) 0.500" (12.70mm) 0.500" (12.70mm) 0.500" (12.70mm)
Insulation Height 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm)
Contact Shape Square Square Square Square Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating Flash Flash Flash 3.90µin (0.099µm) Flash Flash Flash Flash Flash
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass Brass Brass Brass Brass
Insulation Material Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT)
Features - - - - - - - - -
Operating Temperature -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C
Ingress Protection - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Green Green Green Green Green Green Green Green Green
Current Rating (Amps) 5A 5A 5A 5A 5A 5A 5A 5A 5A
Voltage Rating - - - - - - - - -
