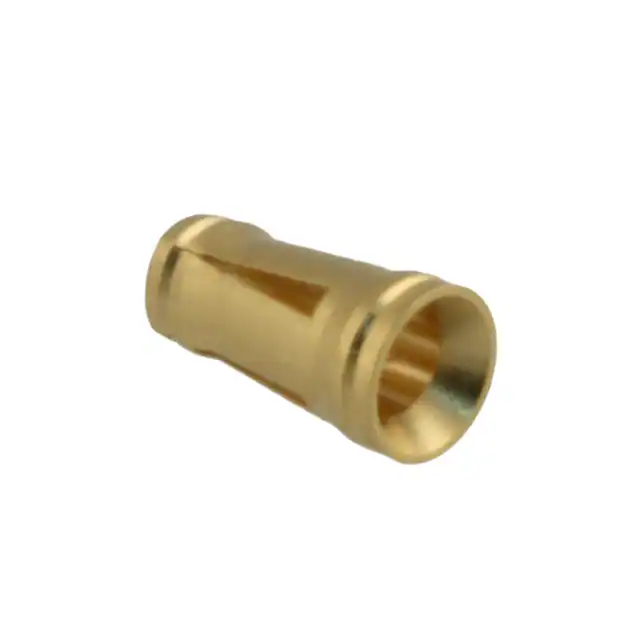

| Part Number | 8134-HC-12P2 | 8134-HC-12P3 | 8134-HC-14P2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Tail Type | No Tail | No Tail | No Tail |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Length - Overall | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.094" (2.39mm) |
| Accepts Pin Diameter | 0.035" ~ 0.045" (0.89mm ~ 1.14mm) | 0.035" ~ 0.045" (0.89mm ~ 1.14mm) | 0.016" ~ 0.021" (0.41mm ~ 0.53mm) |
| Accepts Square Pin Size | - | - | 0.011" x 0.018" (0.28mm x 0.46mm) |
| Pin Hole Diameter | 0.052" (1.32mm) | 0.052" (1.32mm) | 0.029" (0.74mm) |
| Mounting Hole Diameter | 0.082" (2.08mm) | 0.082" (2.08mm) | 0.043" (1.09mm) |
| Flange Diameter | - | - | - |
| Tail Diameter | - | - | - |
| Socket Depth | - | - | - |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Tin-Lead | Gold |
| Contact Finish Thickness | 24.8µin (0.63µm) | 80.0µin (2.03µm) | 24.8µin (0.63µm) |
