Please send RFQ , we will respond immediately.

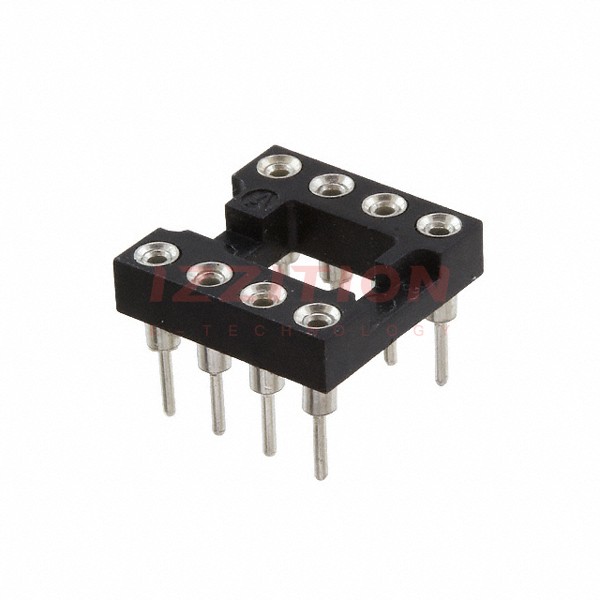

| Part Number | 808-AG12D-ES | 808-AG11D-ES |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 8 (2 x 4) | 8 (2 x 4) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin-Lead | Gold |
| Contact Finish Thickness - Mating | - | 25.0µin (0.63µm) |
| Contact Material - Mating | Copper Alloy | Copper Alloy |
| Mounting Type | Through Hole | Through Hole |
| Features | Open Frame | Open Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | - | - |
| Contact Finish Thickness - Post | - | - |
| Contact Material - Post | - | - |
| Housing Material | Polyester | Polyester |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
