Please send RFQ , we will respond immediately.

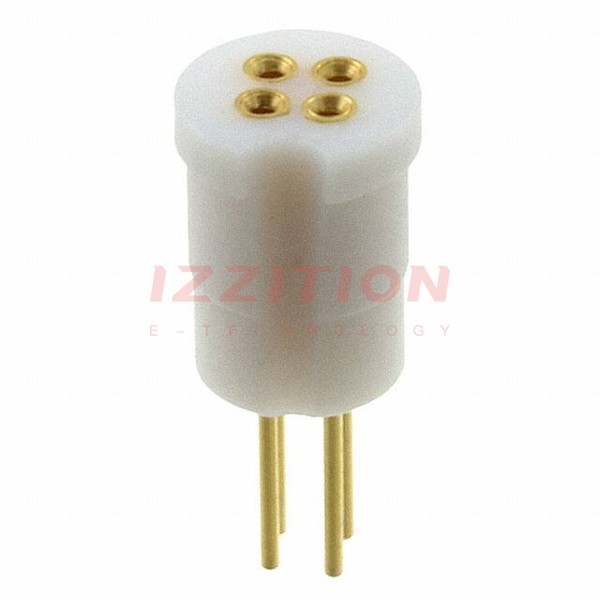

| Part Number | 8060-1G12 | 8060-1G13 | 8060-1G11 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Transistor, TO-5 | Transistor, TO-5 | Transistor, TO-5 |
| Number of Positions or Pins (Grid) | 4 (Round) | 3 (Round) | 3 (Round) |
| Pitch - Mating | - | - | - |
| Contact Finish - Mating | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | - | - | - |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Features | Closed Frame | Closed Frame | Closed Frame |
| Termination | Solder | Solder | Solder |
| Pitch - Post | - | - | - |
| Contact Finish - Post | Gold | Gold | Gold |
| Contact Finish Thickness - Post | - | - | - |
| Contact Material - Post | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Housing Material | Fluoropolymer (FP) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
