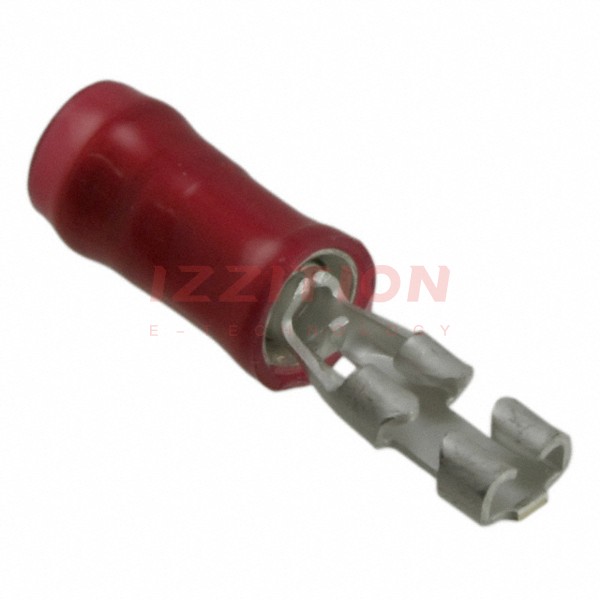

| Part Number | 8-640925-1 | 8-640929-1 | 8-640905-1 | 8-640915-1 | 8-640923-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.205" (5.21mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.800" (20.32mm) | 0.800" (20.32mm) | 0.900" (22.86mm) | 0.800" (20.32mm) | 0.800" (20.32mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 18-22 AWG |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | Red | Blue | Blue | Blue | Red |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
