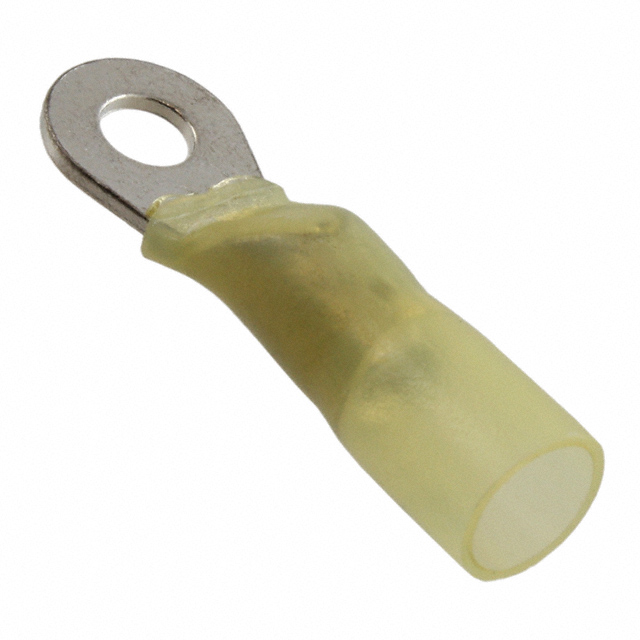

| Part Number | 8-55856-3 | 8-55857-3 | 8-55858-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 10 Stud | 1/4 Stud |
| Thickness | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.520" (13.21mm) |
| Length - Overall | 1.408" (35.76mm) | 1.408" (35.76mm) | 1.598" (40.59mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 10-12 AWG |
| Insulation | Insulated with Heat Shrink | Insulated with Heat Shrink | Insulated with Heat Shrink |
| Features | - | - | - |
| Color | Yellow | Yellow | Yellow |
| Contact Material | Copper, ETP | Copper, ETP | Copper, ETP |
| Contact Finish | Tin | Tin | Tin |
