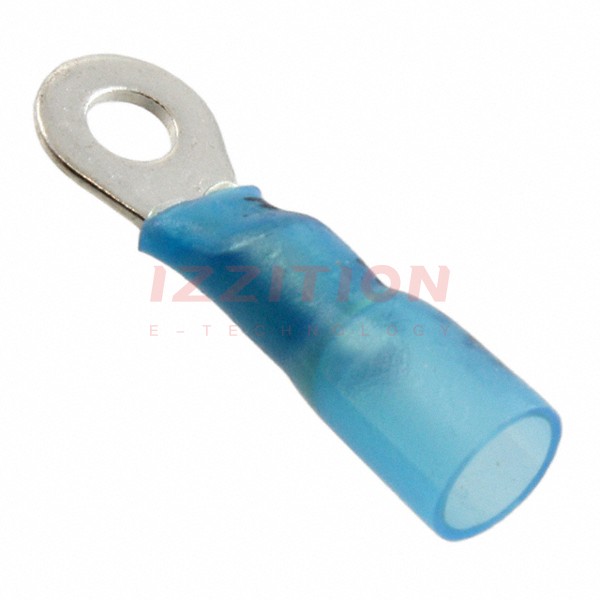

| Part Number | 8-55850-2 | 8-55852-2 | 8-55854-2 | 8-55851-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 6 Stud | 10 Stud | 5/16 Stud | 8 Stud |
| Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Width - Outer Edges | 0.310" (7.87mm) | 0.310" (7.87mm) | 0.460" (11.68mm) | 0.310" (7.87mm) |
| Length - Overall | 1.188" (30.18mm) | 1.218" (30.94mm) | 1.448" (36.78mm) | 1.218" (30.94mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Insulated with Heat Shrink | Insulated with Heat Shrink | Insulated with Heat Shrink | Insulated with Heat Shrink |
| Features | - | - | - | - |
| Color | Blue | Blue | Blue | Blue |
| Contact Material | Copper, ETP | Copper, ETP | Copper, ETP | Copper, ETP |
| Contact Finish | Tin | Tin | Tin | Tin |
