Please send RFQ , we will respond immediately.

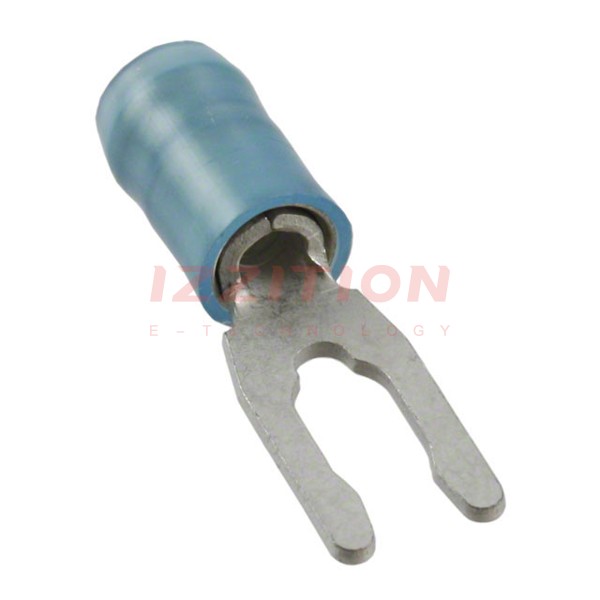

| Part Number | 8-52420-1 | 8-52410-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 6 Stud | 8 Stud |
| Width - Outer Edges | 0.250" (6.35mm) | 0.281" (7.14mm) |
| Length - Overall | 0.933" (23.70mm) | 0.979" (24.87mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination |
| Color | Blue | Red |
| Contact Finish | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
