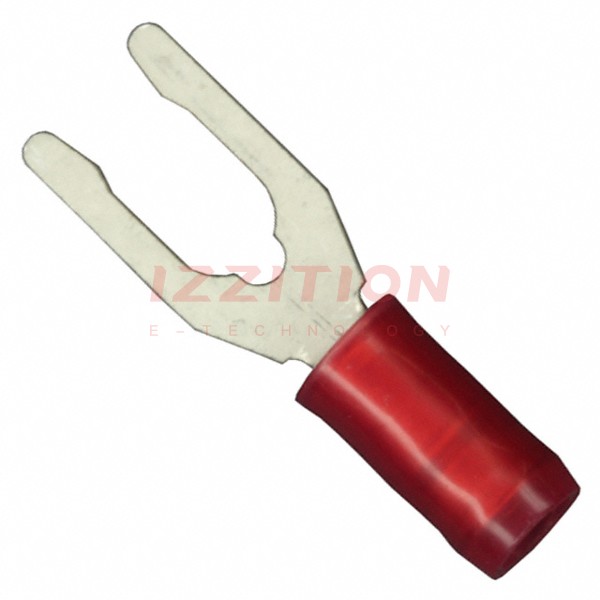

| Part Number | 8-52410-1 | 8-52411-1 | 8-52420-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 8 Stud | 10 Stud | 6 Stud |
| Width - Outer Edges | 0.281" (7.14mm) | 0.343" (8.71mm) | 0.250" (6.35mm) |
| Length - Overall | 0.979" (24.87mm) | 1.005" (25.53mm) | 0.933" (23.70mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Red | Blue |
| Contact Finish | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
