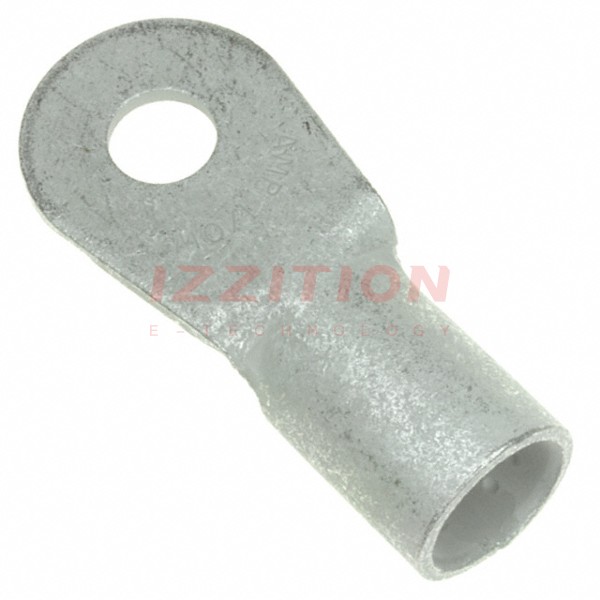

| Part Number | 8-36916-3 | 8-36917-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 5/16 Stud | 3/8 Stud |
| Thickness | 0.070" (1.78mm) | 0.070" (1.78mm) |
| Width - Outer Edges | 0.875" (22.23mm) | 0.875" (22.23mm) |
| Length - Overall | 1.956" (49.68mm) | 1.956" (49.68mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 1/0 AWG | 1/0 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Features | Brazed Seam | Brazed Seam |
| Color | - | - |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
