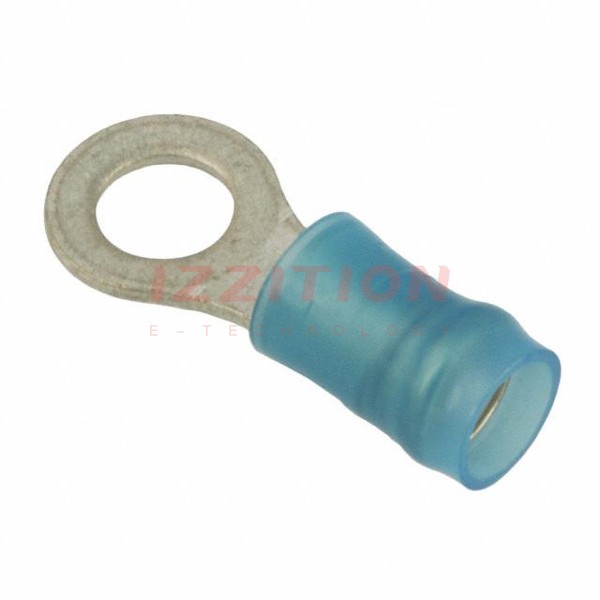

| Part Number | 8-36160-1 | 8-34160-1 | 8-36150-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 8 Stud | 6 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.343" (8.71mm) | 0.343" (8.71mm) | 0.218" (5.54mm) |
| Length - Overall | 0.859" (21.82mm) | 0.871" (22.12mm) | 0.672" (17.07mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | Blue | Red |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
