Please send RFQ , we will respond immediately.

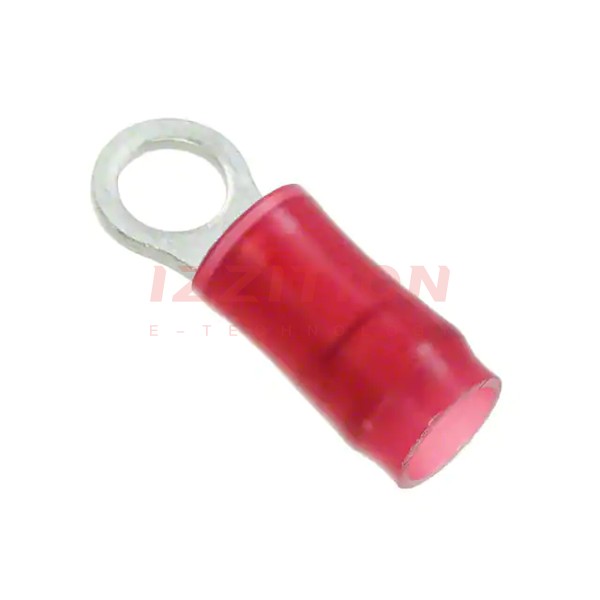

| Part Number | 8-36150-1 | 8-36152-1 | 8-36160-1 | 8-36151-1 | 8-36158-1 | 8-36154-1 | 8-36153-1 | 8-36157-1 | 8-34150-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 6 Stud | 6 Stud | 10 Stud | 6 Stud | 6 Stud | 10 Stud | 10 Stud | 6 Stud | 1/4 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.218" (5.54mm) | 0.281" (7.14mm) | 0.343" (8.71mm) | 0.281" (7.14mm) | 0.343" (8.71mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.343" (8.71mm) | 0.469" (11.91mm) |
| Length - Overall | 0.672" (17.07mm) | 0.797" (20.24mm) | 0.859" (21.82mm) | 0.797" (20.24mm) | 0.859" (21.82mm) | 0.844" (21.44mm) | 0.906" (23.01mm) | 0.859" (21.82mm) | 1.090" (27.69mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 14-16 AWG | 16-22 AWG | 14-16 AWG | 16-22 AWG | 20 AWG | 14-16 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Insulation Restriction | Serrated Termination | Serrated Termination |
| Color | Red | Red | Blue | Red | Blue | Red | Red, Red Stripe | Blue | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
