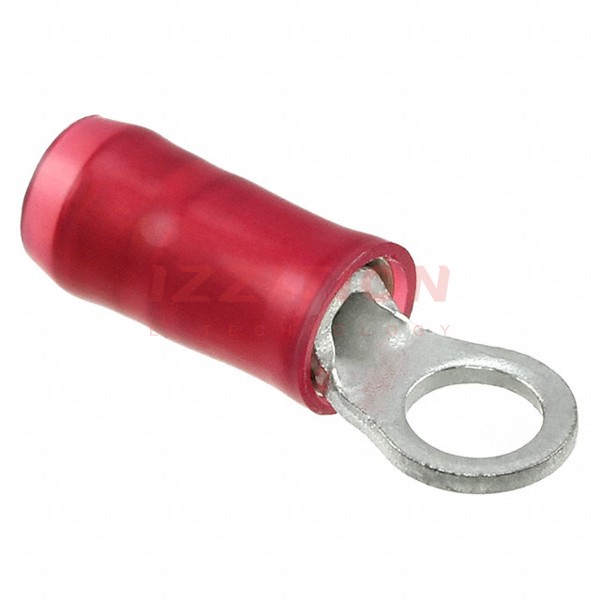

| Part Number | 8-36149-1 | 8-34149-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 6 Stud | 10 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.218" (5.54mm) | 0.312" (7.92mm) |
| Length - Overall | 0.672" (17.07mm) | 0.856" (21.74mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination |
| Color | Red | Red |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
