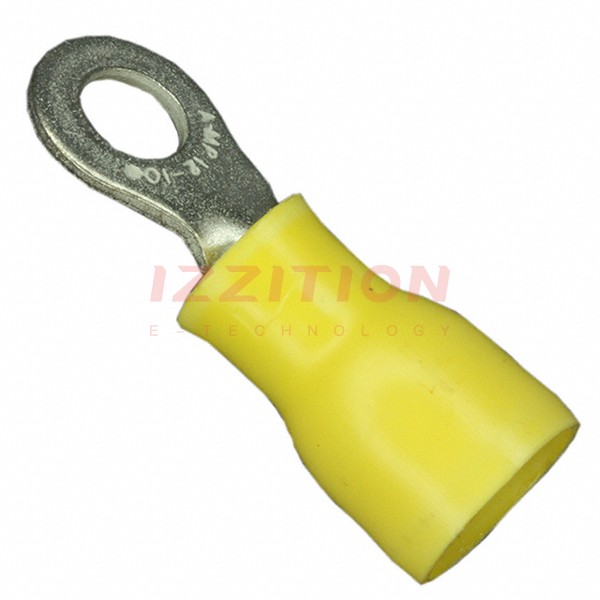

| Part Number | 8-35364-2 | 8-35362-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 10 Stud | 1/4 Stud |
| Thickness | 0.039" (0.99mm) | 0.048" (1.22mm) |
| Width - Outer Edges | 0.375" (9.53mm) | 0.531" (13.49mm) |
| Length - Overall | 1.172" (29.77mm) | 1.385" (35.18mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated |
| Features | Serrated Termination | Heavy Duty, Serrated Termination |
| Color | Yellow | Yellow, Black Stripe |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
