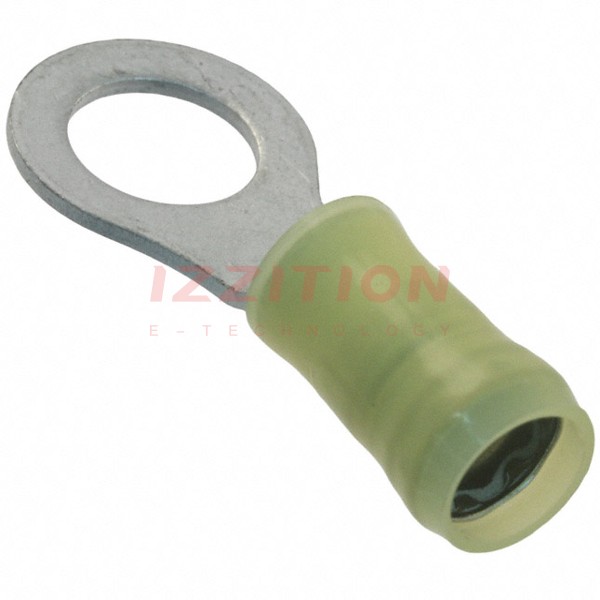

| Part Number | 8-35111-1 | 8-35112-1 | 8-34111-1 | 8-35110-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 5/16 Stud | 3/8 Stud | 8 Stud | 1/4 Stud |
| Thickness | 0.040" (1.02mm) | 0.039" (0.99mm) | 0.031" (0.79mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.531" (13.49mm) | 0.593" (15.06mm) | 0.312" (7.92mm) | 0.531" (13.49mm) |
| Length - Overall | 1.322" (33.58mm) | 1.414" (35.92mm) | 0.621" (15.77mm) | 1.322" (33.58mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 16-22 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Non-Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination |
| Color | Yellow | Yellow | - | Yellow |
| Contact Material | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin |
