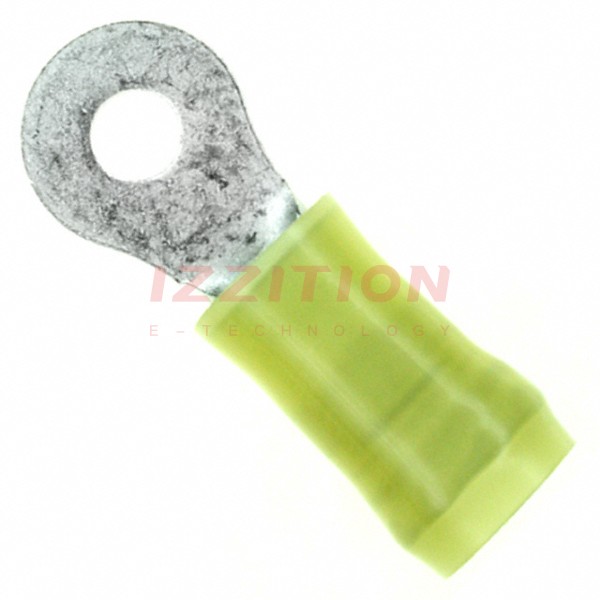

| Part Number | 8-35107-2 | 8-35106-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 6 Stud | 8 Stud |
| Thickness | 0.040" (1.02mm) | 0.048" (1.22mm) |
| Width - Outer Edges | 0.375" (9.53mm) | 0.343" (8.71mm) |
| Length - Overall | 1.083" (27.51mm) | 1.046" (26.57mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated |
| Features | Serrated Termination | Heavy Duty, Serrated Termination |
| Color | Yellow | Yellow, Black Stripe |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
