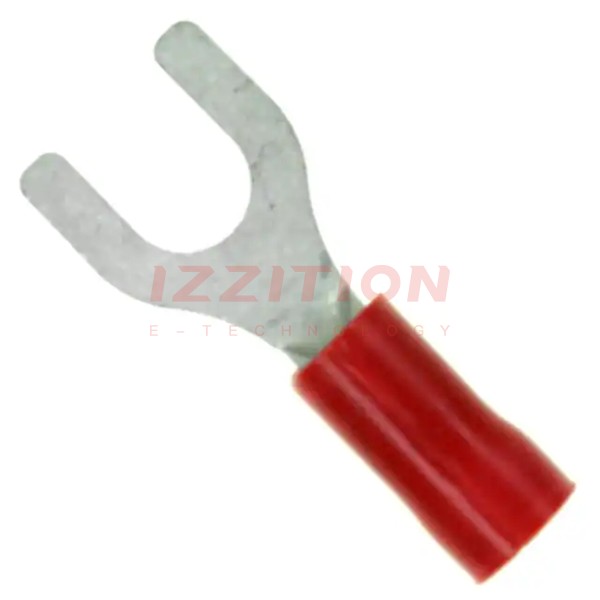

| Part Number | 8-34156-1 | 8-34176-1 | 8-34166-1 | 8-34155-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Stud/Tab Size | 10 Stud | 10 Stud | 8 Stud | 8 Stud |
| Width - Outer Edges | 0.375" (9.53mm) | 0.406" (10.31mm) | 0.385" (9.78mm) | 0.375" (9.53mm) |
| Length - Overall | 0.920" (23.37mm) | 1.095" (27.81mm) | 0.920" (23.37mm) | 0.920" (23.37mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 10-12 AWG | 14-16 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Yellow | Blue | Red |
| Contact Finish | - | - | - | - |
| Contact Material | Copper | Copper | Copper | Copper |
