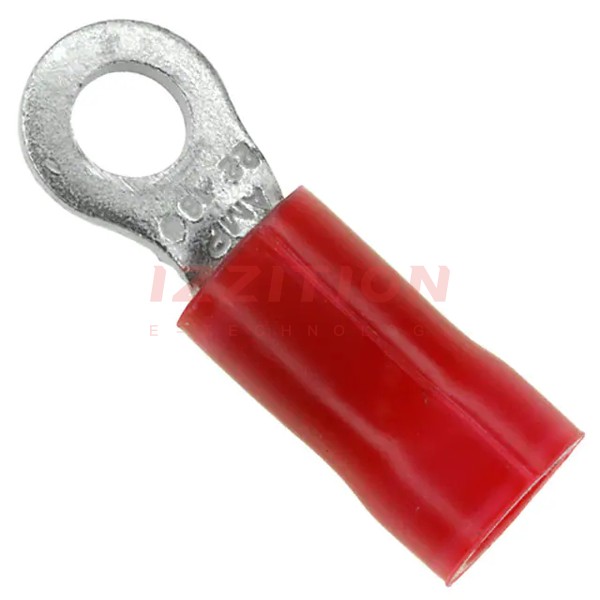

| Part Number | 8-34141-1 | 8-34144-1 | 8-34146-1 | 8-34161-1 | 8-34149-1 | 8-34145-1 | 8-34148-1 | 8-34142-1 | 8-34151-1 | 8-34147-1 | 8-34111-1 | 8-34121-1 | 8-34140-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 4 Stud | 6 Stud | 10 Stud | 10 Stud | 10 Stud | 8 Stud | 8 Stud | 6 Stud | 5/16 Stud | 6 Stud | 8 Stud | 6 Stud | 2 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.218" (5.54mm) | 0.281" (7.14mm) | 0.281" (7.14mm) | 0.343" (8.71mm) | 0.312" (7.92mm) | 0.281" (7.14mm) | 0.312" (7.92mm) | 0.218" (5.54mm) | 0.469" (11.91mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.343" (8.71mm) | 0.218" (5.54mm) |
| Length - Overall | 0.684" (17.37mm) | 0.809" (20.55mm) | 0.809" (20.55mm) | 0.871" (22.12mm) | 0.856" (21.74mm) | 0.809" (20.55mm) | 0.856" (21.74mm) | 0.684" (17.37mm) | 1.090" (27.69mm) | 0.856" (21.74mm) | 0.621" (15.77mm) | 0.636" (16.15mm) | 0.684" (17.37mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Non-Insulated | Non-Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination |
| Color | Red | Red | Red | Blue | Red | Red | Red | Red | Red | Red | - | - | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
