8-34121-1
  • Share:

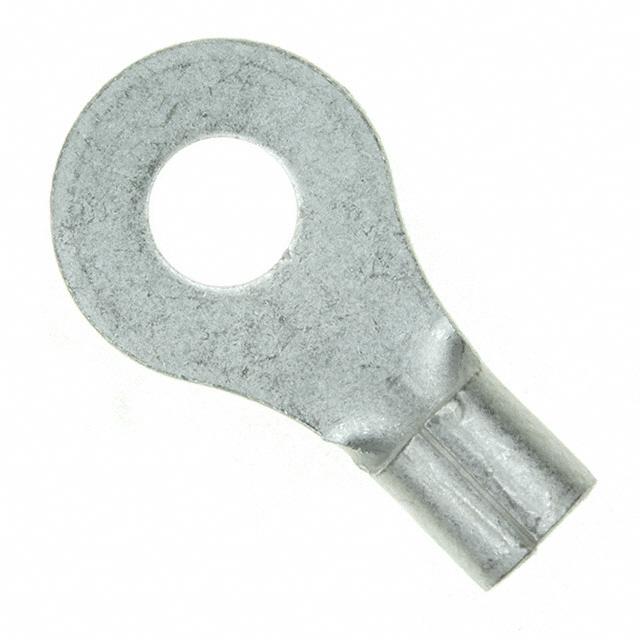

TE Connectivity AMP Connectors 8-34121-1

Manufacturer No:
8-34121-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
8-34121-1 Datasheet
ECAD Model:
-
Description:
CONN RING CIRC 14-16AWG #6 CRIMP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Terminal Type:Circular
Stud/Tab Size:6 Stud
Thickness:0.031" (0.79mm)
Width - Outer Edges:0.343" (8.71mm)
Length - Overall:0.636" (16.15mm)
Mounting Type:Free Hanging (In-Line)
Termination:Crimp
Wire Gauge:14-16 AWG
Insulation:Non-Insulated
Features:Brazed Seam, Serrated Termination
Color:-
Contact Material:Copper
Contact Finish:Tin
0 Remaining View Similar

In Stock

$0.56
963

Please send RFQ , we will respond immediately.

Similar Products

Part Number 8-34121-1 8-34123-1   8-34124-1   8-34161-1   8-34141-1   8-34125-1   8-34122-1   8-34151-1   8-34126-1   8-34111-1   8-34120-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active Active Active
Terminal Type Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular Circular
Stud/Tab Size 6 Stud 10 Stud 1/4 Stud 10 Stud 4 Stud 5/16 Stud 8 Stud 5/16 Stud 3/8 Stud 8 Stud 6 Stud
Thickness 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm)
Width - Outer Edges 0.343" (8.71mm) 0.343" (8.71mm) 0.469" (11.91mm) 0.343" (8.71mm) 0.218" (5.54mm) 0.469" (11.91mm) 0.343" (8.71mm) 0.469" (11.91mm) 0.531" (13.49mm) 0.312" (7.92mm) 0.250" (6.35mm)
Length - Overall 0.636" (16.15mm) 0.636" (16.15mm) 0.855" (21.72mm) 0.871" (22.12mm) 0.684" (17.37mm) 0.855" (21.72mm) 0.636" (16.15mm) 1.090" (27.69mm) 0.995" (25.27mm) 0.621" (15.77mm) 0.480" (12.19mm)
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Termination Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp
Wire Gauge 14-16 AWG 14-16 AWG 14-16 AWG 14-16 AWG 16-22 AWG 14-16 AWG 14-16 AWG 16-22 AWG 14-16 AWG 16-22 AWG 14-16 AWG
Insulation Non-Insulated Non-Insulated Non-Insulated Insulated Insulated Non-Insulated Non-Insulated Insulated Non-Insulated Non-Insulated Non-Insulated
Features Brazed Seam, Serrated Termination Brazed Seam, Serrated Termination Brazed Seam, Serrated Termination Serrated Termination Serrated Termination Brazed Seam, Serrated Termination Brazed Seam, Serrated Termination Serrated Termination Brazed Seam, Serrated Termination Brazed Seam, Serrated Termination Brazed Seam, Serrated Termination
Color - - - Blue Red - - Red - - -
Contact Material Copper Copper Copper Copper Copper Copper Copper Copper Copper Copper Copper
Contact Finish Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin
