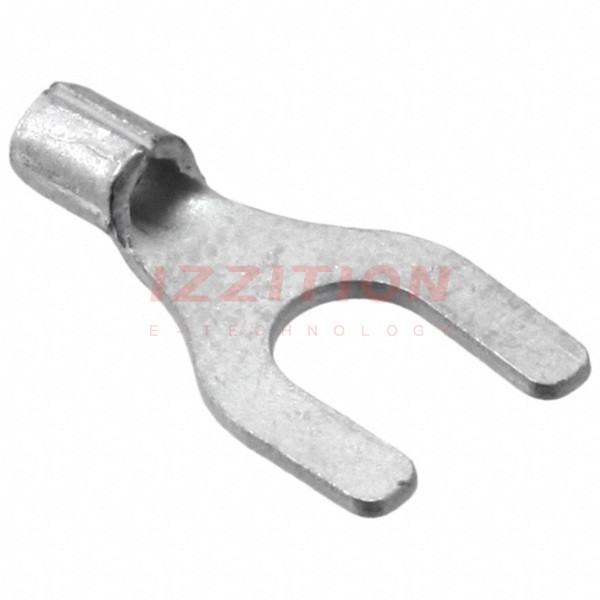

| Part Number | 8-34118-5 | 8-34117-5 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Stud/Tab Size | 10 Stud | 8 Stud |
| Width - Outer Edges | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Length - Overall | 0.685" (17.40mm) | 0.685" (17.40mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
