Please send RFQ , we will respond immediately.

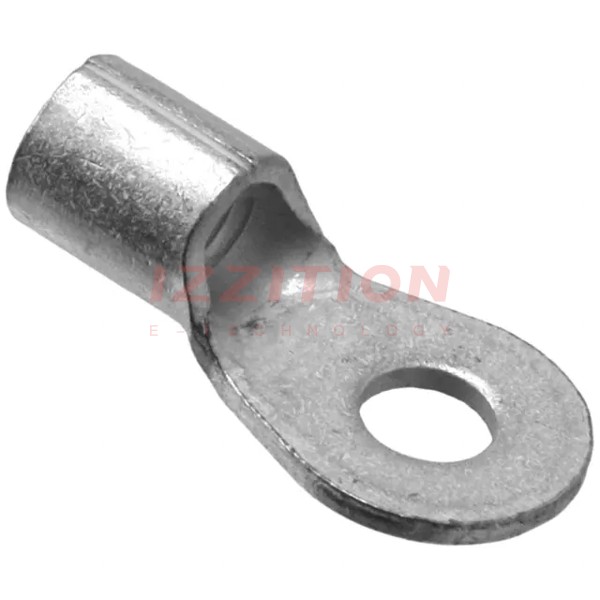

| Part Number | 8-33460-2 | 8-33470-2 | 8-33469-2 | 8-33465-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 5/16 Stud | 1/4 Stud | 1/4 Stud |
| Thickness | 0.048" (1.22mm) | 0.070" (1.78mm) | 0.070" (1.78mm) | 0.057" (1.45mm) |
| Width - Outer Edges | 0.469" (11.91mm) | 0.656" (16.66mm) | 0.656" (16.66mm) | 0.625" (15.88mm) |
| Length - Overall | 0.933" (23.70mm) | 1.314" (33.38mm) | 1.314" (33.38mm) | 1.246" (31.65mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 8 AWG | 4 AWG | 4 AWG | 6 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - | - | - |
| Contact Material | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin |
