Please send RFQ , we will respond immediately.

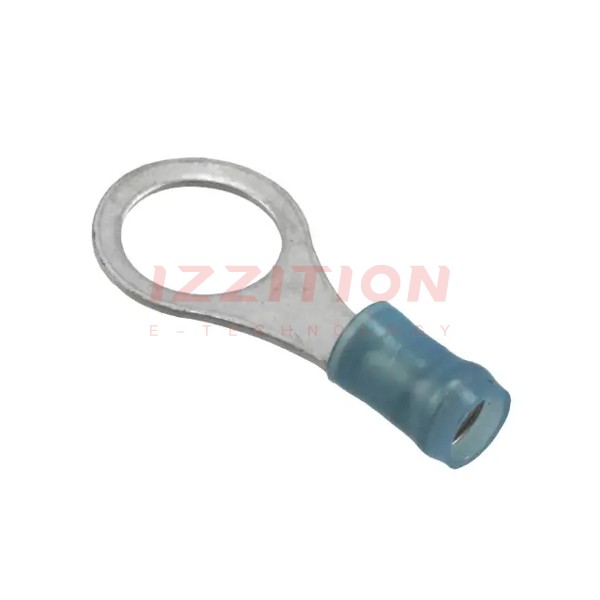

| Part Number | 8-328999-1 | 8-328996-1 | 8-328998-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 3/8 Stud | 4 Stud | 5/16 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.469" (11.91mm) |
| Length - Overall | 1.218" (30.94mm) | 0.703" (17.86mm) | 1.078" (27.38mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | Blue | Blue |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
